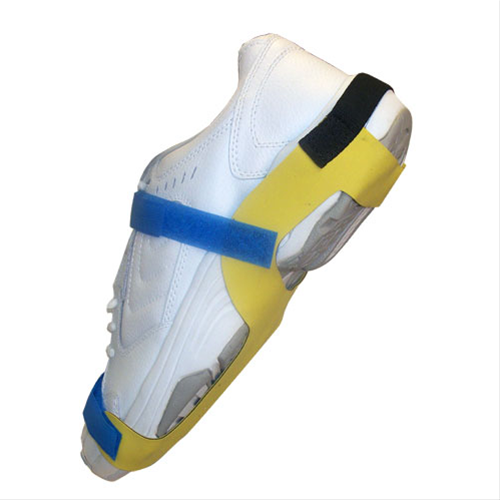

The HG9000 series non-marking sole grounder from Transforming Technologies provides a more complete path-
to-ground than regular heel or toe grounders due to a wider and more consistent contact area. The HG9000 series will not mark shoes or floors reducing maintenance costs of touching up on floors. Available in S, M and L sizes.
These sole grounders provide rapid and complete static dissipation due to constant contact through entire walking motion. Wearing the conductive ribbon inside the shoe or sock assures proper electrical contact with the user. A rugged 1 meg ohm buried resistor is standard. Sole grounders are worn on both feet to provide consistent grounding while in motion.
Meets or exceeds requirements of ANSI ESDS-20.20.
Features:
- Provides a more complete path to-ground than regular heel grounders due to a wider and more consistent contact area.
- Resistor: 1 meg ohm (+/- 5% tolerance), Buried
- Color: Blue Elastic, Yellow/ rubber
- Rubber Exterior: <10e5 ohms, 35mm wide
- Ribbon: Conductive yarn in gray polyester ribbon
NOTE: Sold in packs of 50
