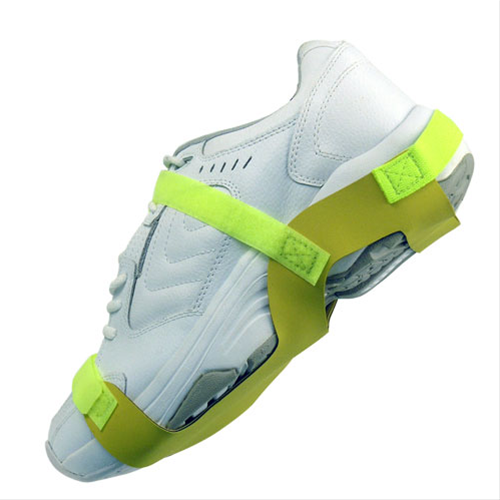

The HG9000-HV series sole grounder from Transforming Technologies provides a more complete path to ground than regular heel or toe grounders due to a wider and more consistent contact area. The HG9000 series will not mark shoes or floors - reducing maintenance costs of touching up on floors. Available in S, M and L sizes.
ESD Sole Grounders (or ESD Foot Grounders) have over 20 times the surface contact of standard ESDheel straps. This surface area advantage extends the life of the Sole grounder over a standard heel grounders which fail over time due to even the slightest contamination, necessitating replacement or cleaning, wasting time and costing money.
These sole grounders provide rapid and complete static dissipation due to constant contact through entire walking motion. Wearing the conductive ribbon inside the shoe or sock assures proper electrical contact with the user. A rugged 1 meg ohm buried resistor is standard. Heel grounders are worn on both feet to provide consistent grounding while in motion.
Meets or exceeds requirements of ANSI ESDS20.20.
Features:
- Provides a more complete path to-ground than regular heel grounders due to a wider and more consistent contact area.
- Resistor: 1 meg ohm (+/- 5% tolerance), Buried
- Color: Yellow Elastic, Yellow/ rubber
- Rubber Exterior: <10e5 ohms, 35mm wide
- Ribbon: Conductive yarn in gray polyester ribbon
NOTE: Sold in packs of 50
