Part #: 288B

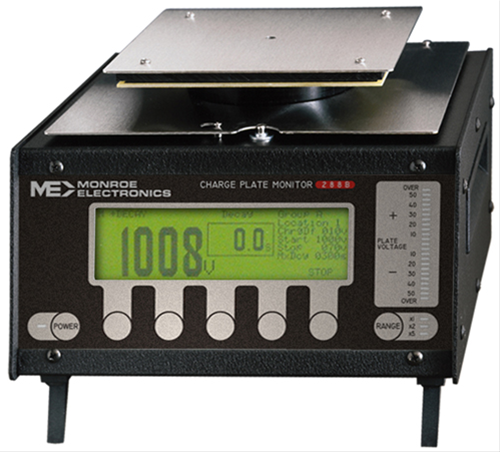

The Model 288B’s easy-to-use, self-contained design simplifies ionizer audits: Testing your ionizers is as simple as pushing a button. Model 288B is the first Charged Plate Monitor to incorporate a microprocessor and data storage, eliminating the need for a dedicated computer. All test parameters are programmable allowing tests to be optimized and not dictated by equipment limitations.
Once programmed, the Model 288B will perform a series of tests automatically: +/- decays, balance, balance peaks, temperature, humidity, time/date are stored and may be reviewed via the display or downloaded to a PC. The PC software (included) permits the user to define and name ionizer locations, test setups and sequences, then upload these to the CPM. All of these features result in a flexible, easy to use instrument that facilitates audits while minimizing errors.
Features:
- Innovative non-contacting electrometer
provides tests to unprecedeted low
voltage with unmatched stability - Fully configurable operating parameters
- Soft keys for highly intuitive programming
- Manual and automated testing of Decay
and Balance - Internal storage for up to 1500 tests, 500
locations and 4 test protocols - Internal battery for portable operation
(also line operated) - Large, easy to read, high contrast LCD
display - Detachable 6” x 6” plate
(Optional plate 1” X 1” plate available)
- RS232 interface
- Built in temperature and humidity
sensors
- Auto-ranging to 0.1V resolution below
100V
- Compatible with new 288B Graphing
Software
