Part #: 300

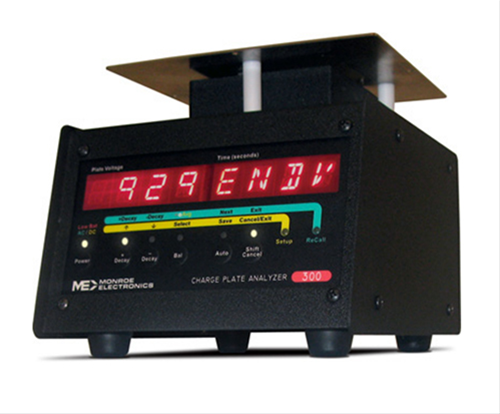

The Model Number 300 charge plate monitor uses large, high-contrast, alpha/numeric LED displays for easy reading at any viewing angle, even in high ambient lighting conditions. Individual LED’s, provide additional operation status during testing and setup. Single-button operation of manual +decay, -decay and balance ensures simple, easy operation. Balance tests record ±peaks and average reading. Each test can be customized in setup for stop trip levels and test duration. An automated set of tests can be initiated with a single button depress.
Operation and setup can be done via a USB port and PC software in addition to the front panel buttons. Test results can also be retrieved for automatic or manual test.
Real time analysis of ionizers can be done via the analog output.
Meets Requirements of ANSI/ESD STM 3.1
Features:
- Measures, displays and stores last test data, including discharge times, peak offset voltages, and average offset voltage.
- Easiest, most reliable way to check effectiveness of all ionization-type static control systems3
- Removable, cable-connected ion collecting plate probe permits precise positioning and remote monitoring
- Separate time and voltage displays for discharge time test
- Recorder output for permanent records and unattended operation
- One range measures from 0 to ±1kV
- Dramatically demonstrates induced charges and human body potential
