Item #: RT-1000

Humidity and temperature affect resistivity so they must be tested. The Ohm-Stat^® RT-1000 tests resistivity, humidity and temperature of all conductive, antistatic and static dissipative surfaces for electrical resistivity/resistance according to the EOS/ESD CECC, ANSI, ASTM, UL, NFPA, Military, and EIA test procedures.

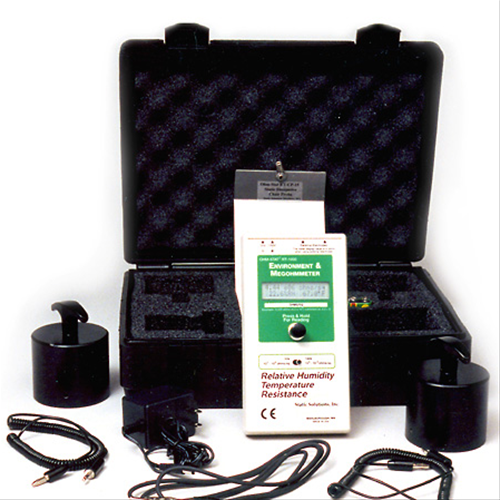

The RT-1000 includes:

• Two 5lb. 2.5" probes with handles
• Two 3" parallel surface resistivity probes
• Dissipative chair test probe (meets ANSI/EOS/ ESD Standard 12.1)
• Earth ground probe
• Garment clamps (conforms to EOS/ESD 2.1 standard)
• Concentric ring probe available
• Foam lined carrying case

RT-1000 Features:

• Easy to read digital display
• Measures resistivity/resistance to 10³-10¹² ohms
• Measures relative humidity-10% to 90% RH
• Measures temperature: 32°F to 100°F or 0°C to 37°C
• 10v/100v dual test voltage ranges
• Automatic zeroing and power off
• 120v or 220v AC and 9v DC alkaline or nickel cadmium
• Meets ANSI/EOS/ESD Standard 11.11
• CE Approved
• NIST certificate included
