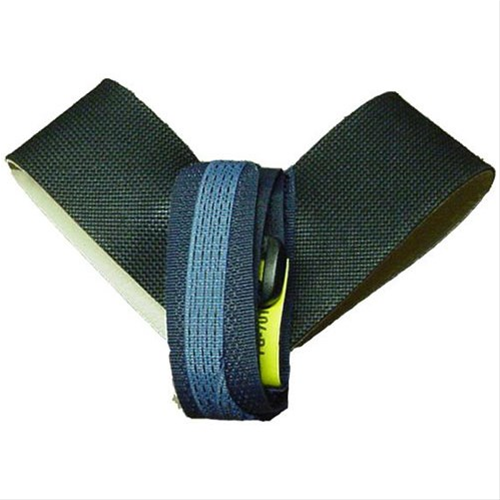

Static Solutions D Ring Heel Grounder

SKU : SS-36

LEAD TIME: 5-7 Days

Price:    $6.95

Images of the product



  E-Mail to a Friend

PRODUCT DESCRIPTION:

Item #: FG-7010

Static Solutions, Inc. heel grounders are specially designed to provide a continuous ground path between the user and a properly grounded ESD floor wax, ESD paint, or ESD rubber/PVC tiles. Our heel grounders are designed to drain the static charge of a user that is built up during normal activity. They offer instant static dissipation for rapid protection.

Job functions which require worker mobility should use heel grounders. Failure to wear a heel grounder risks potential damage to the equipment which the user operates and the component parts they contact.

All Ohm-Stat foot grounders can be adjusted to fit the user. The Ohm-Stat Heel Grounder line has four unique styles to fit a wide variety of men's and women's shoes, boots, safety shoes, loafers, tennis shoes, and running shoes. They are easy cleaned with mild detergent and water.

To assure that a continuous path to ground is maintained, the user should wear the ESD footwear on both feet. A heel grounder should be used on a floor surface with a resistivity of less than 1010 Ohms/sq.

Features:

  • Heel Cup: .060" (1.5mm) thick 1-3/8" wide dual elastomer with non-smudging interior and black (non smudging where noted) exterior
  • Heel Cup Resistivity: 103-105 Ohms/sq.
  • Resistor: One megohm value ¼ watt (+/-10%) carbon film resistor
  • Tab: Blue (or customized) 3/8" wide fray resistant polyester tab with conductive carbon stuffed fibers
  • Tab to Cup Resistance: 1x106 ohms - 1x107
  • Elastic D ring, two layer non blacking interior with 1 megohm resistor
  • Will Not Mark Shoes
  • Comfortable Closure
  • High tire grade rubber: ensures complete static dissipation
  • Conforms to EOS/ESD 20.20 Standards
  • Wide 1.5 inch cup
  • Long lasting shore d durometer comfortable to wearer
  • Patented design #6,426,859 B1









Stock : 0

Specs/ Options/ Resources:


QTY:

Department : Heel Straps
Category : /storefront/listproducts.aspx?idcategory=1212'>Static SolutionsStatic Solutions
Supplier/Brand : Static Solutions
