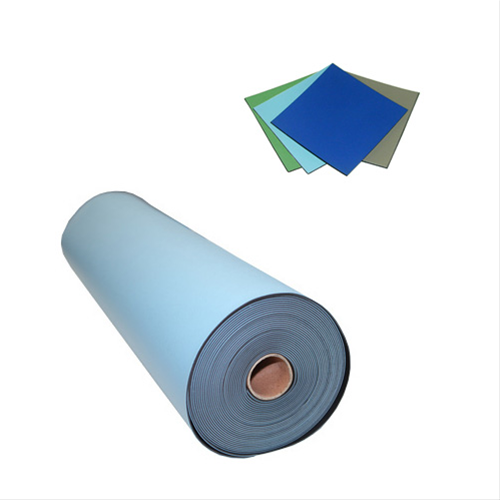

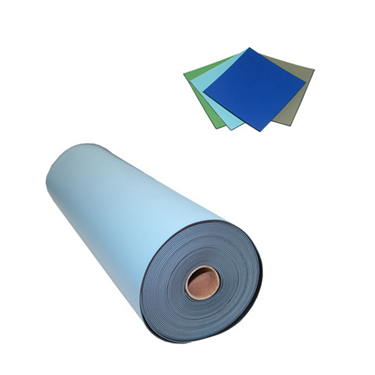

Transforming Technologies MTT Series Textured Two Layer Rubber Roll
The MT-Texture series ESD-safe 2-layer rubber matting is made of 100% co-extruded rubber. The durable two layer mat is constructed with a textured dissipative top layer and a conductive bottom layer and offers excellent resistance to hot solders, soldering irons and most solvents.
The MT-Texture series is 0.080" thick and available in 40’ rolls in 2', 30", 3' and 4' widths. Pre cut mat sizes are available with grounding hardware and common point ground cords. Available in Light Blue, Dark Blue, Gray and Green.
Meets or exceeds requirements of ANSI ESD S541-2003. RoHS compliant.
Features:
- Thickness: 0.08"
- Hardness: 60 (Shore A)
- Tensile Strength: >1000 PSI
- Elongation: >300%
- Top Layer Resistance: 10^7 ohms
- Bottom Layer Resistance: 10^4 ohms
Decay Rate 5kv to 50v in less than .1 second
