WS Aware Monitor, 4.20A Out, Standard Remotes

SKU : SCS-66

LEAD TIME: 2-3 Weeks

Price:    $604.17

Images of the product



  E-Mail to a Friend

PRODUCT DESCRIPTION:

SCS (formerly 3M) Item #: CTC061-3-242-WW

  • Dual Workstation Continuous Monitor
    Continuously monitors the path-to-ground integrity of two operators, two conductive or dissipative worksurfaces, and two metal tools; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
  • Digital Signal Processing Technology
    Applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components
  • Operator Body Voltage Detection
    Alarms if the operator generates or comes in contact with voltage that would be dangerous to an ESD susceptible item
  • EMI Monitoring on Metal Grounds
    Alarms if the grounded metal tools have high-frequency noise that could cause electrical overstress (EOS) damage

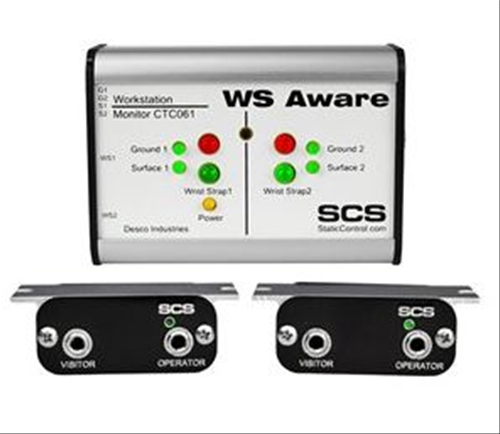

  • System Includes Monitor and Two Remote Terminals
    Monitor can be installed at eye level, and remote terminals can be mounted at desired locations up to 10 feet away. Each remote terminal includes a monitored jack for operators and an unmonitored jack for visitors.
  • Analog Data Output (4.20 mA)
    Interfaces with data acquisition systems that accept a 4.20 mA input signal
  • Use with Dual-Wire Wrist Straps
    See SCS Dual-Wire Wrist Straps
  • Replaceable Dual-Wire Operator Jack
    Use the CTA245 Replacement Jack PCB to easily replace the operator jack without the use of solder
  • Calibration Unit Available for Accurate Performance and Conformity Testing in the Field
    See SCS item CTE701
  • NIST Calibrated with Certificate Included
    Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.  For more information on the calibration of SCS products, seeCalibration.
  • 100-240VAC Power Adapter with Interchangeable Plugs
    Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe





Stock : 0

Specs/ Options/ Resources:


QTY:

Department : Continuous Monitors
Category : /storefront/listproducts.aspx?idcategory=1191'>SCS (formerly 3M)Static Control
Supplier/Brand : SCS (fromerly 3M)
  Show Cart
  Keep Shopping

This product was last updated on 08/05/2016.
