Item #: RT-500
The Ohm-Stat™ RT-500 Megohmmeter measures Surface Resistivity using parallel electrodes and concentric rings. Tests Resistance To Ground (RTG), Resistance Between Two Points (RTT) and Volume Resistance using two 5 lb. 2.5” disk probes.
Ohm-Stat RT-500 tests each sleeve of a garment for continuity in addition to performing dissipative seating tests. The RT-500 can also test shoes, heelgrounders, and wrist straps with optional accessories. Conforms to ANSI/EOS/ESD (S4.1, S7.1, S12.1, S2.1), EN 61340.5.1, ASTM-F150, NFPA 99A, and ASTMD257 standards.
The Ohm-Stat RT-500 Megohmmeter is designed to quality inspect incoming materials such as floor finishes, floor mats, table mats, conductive floor tiles, work surfaces, paints, bags, wrist straps, common point ground cords, footwear, packaging materials, clothing, and ESD chairs in static controlled areas.
RT-500 Features:
- Range: 103 – 1012 ohms -100 percent accuracy
- Measures resistance/resistivity, RTT, RTG and volume resistance with accessories
- Automatic zeroing and power shut off
- CE approved
- Conforms to EOS/ESD, NFPA, ANSI, UL, ASTM, Military, EIA, and EN standards
- 10 volts and 100 volts
- Automatic voltage range selector
- Small, light weight - 2.6 x 5 x 1.2 inches (6.5 x 113 x 3cm), 8.4 oz. (233 grams)
- LED display color indicates range
- Low battery warning light

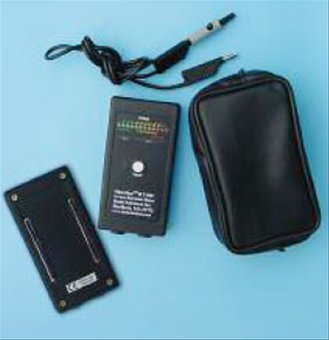

The RT-500 includes:
- Parallel bar, resistivity probes and RTG cord - Jacks are available for external probes
- Grounding hardware and instructions
- One-year limited warranty
- NIST Certificate
- 9v DC alkaline battery
- Carrying case
