Eagle Wire Posts

SKU : EAG-36

LEAD TIME: 8-10 Days


Images of the product



  E-Mail to a Friend

PRODUCT DESCRIPTION:

Features:

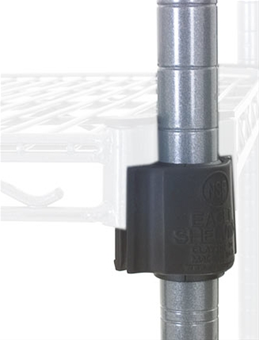

  • Post is 1˝ diameter, numerically grooved in 1˝ increments, and includes post cap and leveling bolt.
  • Assembly: numerically calibrated grooved posts, tapered plastic
    split sleeves and shelf collars combine to make shelving
    assembly a simple two-step exercise: 1) Snap the split sleeves
    onto a post over the number of your choice; and 2) slide a
    shelf collar over the split sleeves. A positive lock be tween
    shelf and post is created without the use of any tools.
  • Open-wire construction promotes higher visibility, allows light
    to pass through the shelves, permits greater air circulation
    which helps reduce moisture and dust build-up, and
    increases the effectiveness of fire-suppression systems.
  • Tapered split sleeves of high-temperature-resistant ABS
    plastic create a positive lock that becomes stronger as the
    load increases.
  • Posts are numbered in increments of 1˝ (25mm) to ensure
    fast and level assembly.
  • Leveling feet are provided to help com pen sate for uneven
    floor surfaces.
  • Shelf strength: shelf mat utilizes a pincer-type design with the
    mat wire sandwiched between the two top truss wires, adding
    significant strength and distributing the entire load without
    stress and strain on the welds.

Weight capacities:

  • 800 lbs. (363 kg) for shelves up to 48˝ (1219mm)-long, evenly distributed static load.
  • 600 lbs. (272 kg) for shelves 54˝ through 72˝ (1372 through
    1829mm)-long. Shelving units should not exceed 2400 lbs.(1089 kg) per set of four posts.

Packaging:

  • 24˝ (610mm) through 48˝ (1219mm) lengths are packed four to a box.
  • 54˝, 60˝ and 72˝ (1372, 1524 and1829mm) lengths are packed two to a box.


Specs/ Options/ Resources:

PRODUCT VARIATION : Please select the options from drop down menu.

wire post finishDescriptionPriceQty
14"
18"
33"
54"
63"
7"
74"
86"
96"


Department : Wire Shelving
Category : /storefront/listproducts.aspx?idcategory=953'>Wire Shelving AccessoriesWire Shelving Accessories
Supplier/Brand : Eagle Group
  Show Cart
  Keep Shopping

This product was last updated on 01/15/2013.
