Item #: FG-7040

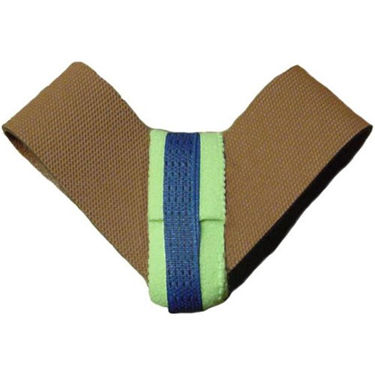

Static Solutions, Inc. heel grounders are specially designed to provide a continuous ground path between the user and a properly grounded ESD safe floor. Our heel grounders are designed to drain the static charge of a user that is built up during normal activity. They offer instant static dissipation for rapid protection.
Job functions which require worker mobility should use heel grounders. Failure to wear a heel grounder risks potential damage to the equipment which the user operates and the component parts they contact.
All Ohm-Stat heel grounders can be adjusted to fit the user. The Ohm-Stat Heel Grounder line has four unique styles to fit a wide variety of men's and women's shoes, boots, safety shoes, loafers, tennis shoes, and running shoes. They are easy cleaned with mild detergent and water.
To assure that a continuous path to ground is maintained, the user should wear heel grounders on both feet. A heel grounder should be used on a floor surface with a resistivity of less than 109 Ohms/sq.
Features:
- PREMIER PLUS Heel Grounder
- BEST heel grounder on the market, will outlast and outperform competition
- Elastic hook and loop, 3 layer, both sides non blacking heel grounder with industrial tire grade rubber
- Longest Lasting: High tire grade rubber / 4 wear surfaces
- Most Durable: Will not tear
- Will not mark shoes or floor
- Comfortable and Snug Fitting: Large 1½” width
- Easy to install and adjust
- Resistance designed Into the material
- Conforms to EOS/ESD 20.20 Standards
- Heel Cup: .060" (1.5mm) thick 1-3/8" wide dual elastomer with non-smudging interior and black (non smudging where noted) exterior
- Heel Cup Resistivity: 103-105 Ohms/sq.
- Resistor: One megohm value ¼ watt (+/-10%) carbon film resistor
- Tab: Blue (or customized) 3/8" wide fray resistant polyester tab with conductive carbon stuffed fibers
- Tab to Cup Resistance: 1x106 ohms - 1x107
