Iron Man Plus Monitor

SKU : SCS-62

LEAD TIME: 2-3 Weeks

Price:    $242.64

Images of the product



  E-Mail to a Friend

PRODUCT DESCRIPTION:

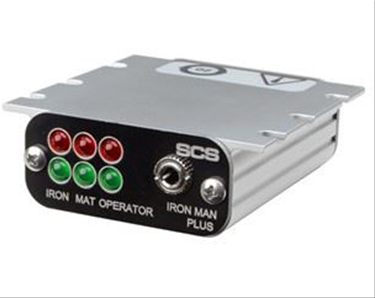

SCS (formerly 3M) Item#: CTC331-WW Iron Man Plus Monitor

  • Single Workstation Continuous Monitor
    Continuously monitors the path-to-ground integrity of an operator and conductive or dissipative worksurface and meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
  • Electrical Overstress (EOS) Detection
    Alarms if overvoltage (±5V or less) from a tool such as a soldering iron or electric screwdriver is applied to a circuit board under assembly
  • Operator Body Voltage Detection
    Alarms if the operator generates or comes in contact with a voltage that would be dangerous to an ESD susceptible item
  • Digital Signal Processing Technology
    Applies a low test voltage to the operator (0.40V) for the handling of sensitive components
  • Miniature Size (0.85” H x 2.4” W x 2.6” L)
    Uses minimal workspace and includes mounting tabs for installation underneath table tops
  • Use with Dual-Wire Wrist Straps
    See SCS Dual-Wire Wrist Straps
  • Replaceable Dual-Wire Operator Jack
    Use the CTA251 Replacement Jack PCB to easily replace the operator jack without the use of solder
  • Calibration Unit Available for Accurate Performance and Conformity Testing in the Field
    See SCS item CTE701
  • NIST Calibrated with Certificate Included
    Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.  For more information on the calibration of SCS products, see Calibration.
  • 100-240VAC Power Adapter with Interchangeable Plugs
    Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe


Stock : 0

Specs/ Options/ Resources:


QTY:

Department : Continuous Monitors
Category : /storefront/listproducts.aspx?idcategory=1191'>SCS (formerly 3M)Static Control
Supplier/Brand : SCS (fromerly 3M)
